Product Details
- Size: 11700x4300x2200/11700*4700*2200 (mm)
- Place of Origin: china
- Brand Name: DeNuo
- Model Number: DN-1400
- Weight: 11000.000 kg

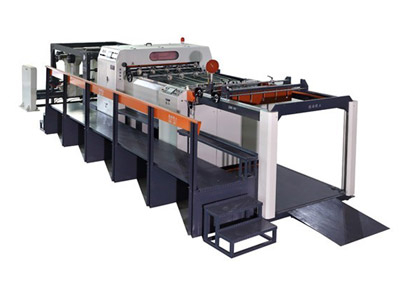

The DN series high speed rotary web press slitting on cylinder knifeuses fine casts the technology, designs the sharp minute to cut theangle, therefore when enters cutting, reduces the collision engine knocksound, reduces the paper wool the phenomenon.
Machine characteristic:
◆ uses the import servometer transmission, the paper cutting speed is quick also is stable;
◆ Taiwan precision cut-off tool, cut-off precision high ±0.3mm;
◆ touches the type computer contact surface operation lightly, the operation is simple;
◆ the completely automatic tensity system, the coordinate English-type multi-spot brakes, cause the paper the precision enhancement and the reduced crease and so on
◆ compared to the similar decelerator gearing service life to the young and the old ten years.
Technical Parameters
:
Model: DN-1400/1700/1900
width:1420/1720/1920mm
length:450-1650mm
Resolution:±0.3mm
Depth:45-600gsm
Maximum speed:300m/min
Paper platform height:1300mm
highest speed:300r/min Machinery weight:11T/12T/13T
Paper Roll diameter:1800mm
Machinery volume:11700x4300x2200/11700*4700*2200 (mm)
